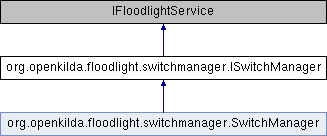

Inheritance diagram for org.openkilda.floodlight.switchmanager.ISwitchManager:

Public Member Functions
ConnectModeRequest.Mode	connectMode (final ConnectModeRequest.Mode mode)

void	installDefaultRules (final DatapathId dpid) throws SwitchOperationException

void	installVerificationRule (final DatapathId dpid, final boolean isBroadcast) throws SwitchOperationException

void	installDropFlow (final DatapathId dpid) throws SwitchOperationException

void	installDropFlowCustom (final DatapathId dpid, String dstMac, String dstMask, final long cookie, final int priority) throws SwitchOperationException

long	installIngressFlow (final DatapathId dpid, final String flowId, final Long cookie, final int inputPort, final int outputPort, final int inputVlanId, final int transitVlanId, final OutputVlanType outputVlanType, final long meterId) throws SwitchOperationException

long	installEgressFlow (final DatapathId dpid, final String flowId, final Long cookie, final int inputPort, final int outputPort, final int transitVlanId, final int outputVlanId, final OutputVlanType outputVlanType) throws SwitchOperationException

long	installTransitFlow (final DatapathId dpid, final String flowId, final Long cookie, final int inputPort, final int outputPort, final int transitVlanId) throws SwitchOperationException

long	installOneSwitchFlow (final DatapathId dpid, final String flowId, final Long cookie, final int inputPort, final int outputPort, int inputVlanId, int outputVlanId, final OutputVlanType outputVlanType, final long meterId) throws SwitchOperationException

List< OFFlowStatsEntry >	dumpFlowTable (final DatapathId dpid)

OFMeterConfigStatsReply	dumpMeters (final DatapathId dpid) throws SwitchOperationException

long	installMeter (final DatapathId dpid, final long bandwidth, final long burstSize, final long meterId) throws SwitchOperationException

long	deleteMeter (final DatapathId dpid, final long meterId) throws SwitchOperationException

Map< DatapathId, IOFSwitch >	getAllSwitchMap ()

List< Long >	deleteAllNonDefaultRules (DatapathId dpid) throws SwitchOperationException

List< Long >	deleteDefaultRules (DatapathId dpid) throws SwitchOperationException

List< Long >	deleteRulesByCriteria (DatapathId dpid, DeleteRulesCriteria... criteria) throws SwitchOperationException

void	startSafeMode (final DatapathId dpid) throws SwitchOperationException

void	stopSafeMode (final DatapathId dpid)

void	safeModeTick ()

void	sendSwitchActivate (final IOFSwitch sw) throws SwitchOperationException

void	sendPortUpEvents (final IOFSwitch sw) throws SwitchOperationException

void	configurePort (DatapathId dpId, int portNumber, Boolean portAdminDown) throws SwitchOperationException

Public Attributes
String	OVS_MANUFACTURER = "Nicira, Inc."

long	DROP_RULE_COOKIE = 0x8000000000000001L

long	VERIFICATION_BROADCAST_RULE_COOKIE = 0x8000000000000002L

long	VERIFICATION_UNICAST_RULE_COOKIE = 0x8000000000000003L

Detailed Description

Definition at line 32 of file ISwitchManager.java.

Member Function Documentation

◆ configurePort()

void org.openkilda.floodlight.switchmanager.ISwitchManager.configurePort	(	DatapathId	dpId,
		int	portNumber,
		Boolean	portAdminDown
	)		throws SwitchOperationException

Configure switch port.
Configurations

UP/DOWN port
Change port speed

Parameters

dpId	datapath ID of the switch.
portNumber	the port to configure.
portAdminDown	the port status to be applied.

Exceptions

SwitchOperationException Switch not found or Port not found

Implemented in org.openkilda.floodlight.switchmanager.SwitchManager.

◆ connectMode()

ConnectModeRequest.Mode org.openkilda.floodlight.switchmanager.ISwitchManager.connectMode ( final ConnectModeRequest.Mode mode )

Set connection mode.

Parameters

mode	the mode to use, if not null

Returns: the connection mode after the set operation (if not null)

Implemented in org.openkilda.floodlight.switchmanager.SwitchManager.

◆ deleteAllNonDefaultRules()

List<Long> org.openkilda.floodlight.switchmanager.ISwitchManager.deleteAllNonDefaultRules ( DatapathId dpid ) throws SwitchOperationException

Deletes all non-default rules from the switch.

Parameters

dpid	datapath ID of the switch

Returns: the list of cookies for removed rules

Exceptions

SwitchOperationException Switch not found

Implemented in org.openkilda.floodlight.switchmanager.SwitchManager.

◆ deleteDefaultRules()

List<Long> org.openkilda.floodlight.switchmanager.ISwitchManager.deleteDefaultRules ( DatapathId dpid ) throws SwitchOperationException

Deletes the default rules (drop + verification) from the switch.

Parameters

dpid	datapath ID of the switch

Returns: the list of cookies for removed rules

Exceptions

SwitchOperationException Switch not found

Implemented in org.openkilda.floodlight.switchmanager.SwitchManager.

◆ deleteMeter()

long org.openkilda.floodlight.switchmanager.ISwitchManager.deleteMeter	(	final DatapathId	dpid,
		final long	meterId
	)		throws SwitchOperationException

Deletes the meter from the switch OF_13.

Parameters

dpid	datapath ID of the switch
meterId	meter identifier

Returns: transaction id

Exceptions

SwitchOperationException Switch not found

Implemented in org.openkilda.floodlight.switchmanager.SwitchManager.

◆ deleteRulesByCriteria()

List<Long> org.openkilda.floodlight.switchmanager.ISwitchManager.deleteRulesByCriteria	(	DatapathId	dpid,
		DeleteRulesCriteria...	criteria
	)		throws SwitchOperationException

Delete rules that match the criteria.

Parameters

dpid	datapath ID of the switch
criteria	the list of delete criteria

Returns: the list of removed cookies

Exceptions

SwitchOperationException Switch not found

Implemented in org.openkilda.floodlight.switchmanager.SwitchManager.

◆ dumpFlowTable()

List<OFFlowStatsEntry> org.openkilda.floodlight.switchmanager.ISwitchManager.dumpFlowTable ( final DatapathId dpid )

Returns list of installed flows.

Parameters

dpid switch id

Returns: OF flow stats entries

Implemented in org.openkilda.floodlight.switchmanager.SwitchManager.

◆ dumpMeters()

OFMeterConfigStatsReply org.openkilda.floodlight.switchmanager.ISwitchManager.dumpMeters ( final DatapathId dpid ) throws SwitchOperationException

Returns list of installed meters.

Parameters

dpid switch id

Returns: OF meter config stats entries

Exceptions

SwitchOperationException Switch not found

Implemented in org.openkilda.floodlight.switchmanager.SwitchManager.

◆ getAllSwitchMap()

Map<DatapathId, IOFSwitch> org.openkilda.floodlight.switchmanager.ISwitchManager.getAllSwitchMap ( )

Implemented in org.openkilda.floodlight.switchmanager.SwitchManager.

◆ installDefaultRules()

void org.openkilda.floodlight.switchmanager.ISwitchManager.installDefaultRules ( final DatapathId dpid ) throws SwitchOperationException

Adds default rules to install verification rules and final drop rule. Essentially, it calls installDropFlow and installVerificationRule twice (ie isBroadcast)

Parameters

dpid	datapathId of switch

Exceptions

SwitchOperationException in case of errors

Implemented in org.openkilda.floodlight.switchmanager.SwitchManager.

◆ installDropFlow()

void org.openkilda.floodlight.switchmanager.ISwitchManager.installDropFlow ( final DatapathId dpid ) throws SwitchOperationException

Installs the default drop rule.

Parameters

dpid	datapathId of switch

Exceptions

SwitchOperationException in case of errors

Implemented in org.openkilda.floodlight.switchmanager.SwitchManager.

◆ installDropFlowCustom()

void org.openkilda.floodlight.switchmanager.ISwitchManager.installDropFlowCustom	(	final DatapathId	dpid,
		String	dstMac,
		String	dstMask,
		final long	cookie,
		final int	priority
	)		throws SwitchOperationException

Installs custom drop rule .. ie cookie, priority, match

Parameters

dpid	datapathId of switch
dstMac	Destination Mac address to match on
dstMask	Destination Mask to match on
cookie	Cookie to use for this rule
priority	Priority of the rule

Implemented in org.openkilda.floodlight.switchmanager.SwitchManager.

◆ installEgressFlow()

long org.openkilda.floodlight.switchmanager.ISwitchManager.installEgressFlow	(	final DatapathId	dpid,
		final String	flowId,
		final Long	cookie,
		final int	inputPort,
		final int	outputPort,
		final int	transitVlanId,
		final int	outputVlanId,
		final OutputVlanType	outputVlanType
	)		throws SwitchOperationException

Installs flow on egress swtich.

Parameters

dpid	datapathId of the switch
flowId	flow id
inputPort	port to expect the packet on
outputPort	port to forward the packet out
transitVlanId	vlan to match on the ingressPort
outputVlanId	set vlan on packet before forwarding via outputPort; 0 means not to set
outputVlanType	type of action to apply to the outputVlanId if greater than 0

Returns: transaction id

Exceptions

SwitchOperationException Switch not found

Implemented in org.openkilda.floodlight.switchmanager.SwitchManager.

◆ installIngressFlow()

long org.openkilda.floodlight.switchmanager.ISwitchManager.installIngressFlow	(	final DatapathId	dpid,
		final String	flowId,
		final Long	cookie,
		final int	inputPort,
		final int	outputPort,
		final int	inputVlanId,
		final int	transitVlanId,
		final OutputVlanType	outputVlanType,
		final long	meterId
	)		throws SwitchOperationException

Installs an flow on ingress switch.

Parameters

dpid	datapathId of the switch
flowId	flow id
inputPort	port to expect the packet on
outputPort	port to forward the packet out
inputVlanId	input vlan to match on, 0 means not to match on vlan
transitVlanId	vlan to add before outputing on outputPort

Returns: transaction id

Exceptions

SwitchOperationException Switch not found

Implemented in org.openkilda.floodlight.switchmanager.SwitchManager.

◆ installMeter()

long org.openkilda.floodlight.switchmanager.ISwitchManager.installMeter	(	final DatapathId	dpid,
		final long	bandwidth,
		final long	burstSize,
		final long	meterId
	)		throws SwitchOperationException

Installs a meter on ingress switch OF_13. TODO: describe params meaning in accordance with OF

Parameters

dpid	datapath ID of the switch
bandwidth	the bandwidth limit value
burstSize	the size of the burst
meterId	the meter ID

Returns: transaction id

Exceptions

SwitchOperationException Switch not found

Implemented in org.openkilda.floodlight.switchmanager.SwitchManager.

◆ installOneSwitchFlow()

long org.openkilda.floodlight.switchmanager.ISwitchManager.installOneSwitchFlow	(	final DatapathId	dpid,
		final String	flowId,
		final Long	cookie,
		final int	inputPort,
		final int	outputPort,
		int	inputVlanId,
		int	outputVlanId,
		final OutputVlanType	outputVlanType,
		final long	meterId
	)		throws SwitchOperationException

Installs flow through one switch.

Parameters

dpid	datapathId of the switch
flowId	flow id
inputPort	port to expect packet on
outputPort	port to forward packet out
inputVlanId	vlan to match on inputPort
outputVlanId	set vlan on packet before forwarding via outputPort; 0 means not to set
outputVlanType	type of action to apply to the outputVlanId if greater than 0

Returns: transaction id

Exceptions

SwitchOperationException Switch not found

Implemented in org.openkilda.floodlight.switchmanager.SwitchManager.

◆ installTransitFlow()

long org.openkilda.floodlight.switchmanager.ISwitchManager.installTransitFlow	(	final DatapathId	dpid,
		final String	flowId,
		final Long	cookie,
		final int	inputPort,
		final int	outputPort,
		final int	transitVlanId
	)		throws SwitchOperationException

Installs flow on a transit switch.

Parameters

dpid	datapathId of the switch
flowId	flow id
inputPort	port to expect packet on
outputPort	port to forward packet out
transitVlanId	vlan to match on inputPort

Returns: transaction id

Exceptions

SwitchOperationException Switch not found

Implemented in org.openkilda.floodlight.switchmanager.SwitchManager.

◆ installVerificationRule()

void org.openkilda.floodlight.switchmanager.ISwitchManager.installVerificationRule	(	final DatapathId	dpid,
		final boolean	isBroadcast
	)		throws SwitchOperationException

Installs the default verification rule, if it is allowed. One case where it isn't - if the switch is an OpenFlow 1.2 switch and isBroadcast = false. In that scenario, nothing happens.

Implemented in org.openkilda.floodlight.switchmanager.SwitchManager.

◆ safeModeTick()

void org.openkilda.floodlight.switchmanager.ISwitchManager.safeModeTick ( )

Implemented in org.openkilda.floodlight.switchmanager.SwitchManager.

◆ sendPortUpEvents()

void org.openkilda.floodlight.switchmanager.ISwitchManager.sendPortUpEvents ( final IOFSwitch sw ) throws SwitchOperationException

Implemented in org.openkilda.floodlight.switchmanager.SwitchManager.

◆ sendSwitchActivate()

void org.openkilda.floodlight.switchmanager.ISwitchManager.sendSwitchActivate ( final IOFSwitch sw ) throws SwitchOperationException

Implemented in org.openkilda.floodlight.switchmanager.SwitchManager.

◆ startSafeMode()

void org.openkilda.floodlight.switchmanager.ISwitchManager.startSafeMode ( final DatapathId dpid ) throws SwitchOperationException

Safely install default rules - ie monitor traffic.

Implemented in org.openkilda.floodlight.switchmanager.SwitchManager.

◆ stopSafeMode()

void org.openkilda.floodlight.switchmanager.ISwitchManager.stopSafeMode ( final DatapathId dpid )

Stop the safe install .. switch is deactivated or removed.

Implemented in org.openkilda.floodlight.switchmanager.SwitchManager.

Member Data Documentation

◆ DROP_RULE_COOKIE

long org.openkilda.floodlight.switchmanager.ISwitchManager.DROP_RULE_COOKIE = 0x8000000000000001L

Definition at line 35 of file ISwitchManager.java.

◆ OVS_MANUFACTURER

String org.openkilda.floodlight.switchmanager.ISwitchManager.OVS_MANUFACTURER = "Nicira, Inc."

OVS software switch manufacturer constant value.

Definition at line 34 of file ISwitchManager.java.

◆ VERIFICATION_BROADCAST_RULE_COOKIE

long org.openkilda.floodlight.switchmanager.ISwitchManager.VERIFICATION_BROADCAST_RULE_COOKIE = 0x8000000000000002L

Definition at line 36 of file ISwitchManager.java.

◆ VERIFICATION_UNICAST_RULE_COOKIE

long org.openkilda.floodlight.switchmanager.ISwitchManager.VERIFICATION_UNICAST_RULE_COOKIE = 0x8000000000000003L

Definition at line 37 of file ISwitchManager.java.

The documentation for this interface was generated from the following file:

/Users/kevin/Desktop/Kilda/open-kilda-develop/services/src/floodlight-modules/src/main/java/org/openkilda/floodlight/switchmanager/ISwitchManager.java

Public Member Functions

Public Attributes

Detailed Description

Member Function Documentation

◆ configurePort()

◆ connectMode()

◆ deleteAllNonDefaultRules()

◆ deleteDefaultRules()

◆ deleteMeter()

◆ deleteRulesByCriteria()

◆ dumpFlowTable()

◆ dumpMeters()

◆ getAllSwitchMap()

◆ installDefaultRules()

◆ installDropFlow()

◆ installDropFlowCustom()

◆ installEgressFlow()

◆ installIngressFlow()

◆ installMeter()

◆ installOneSwitchFlow()

◆ installTransitFlow()

◆ installVerificationRule()

◆ safeModeTick()

◆ sendPortUpEvents()

◆ sendSwitchActivate()

◆ startSafeMode()

◆ stopSafeMode()

Member Data Documentation

◆ DROP_RULE_COOKIE

◆ OVS_MANUFACTURER

◆ VERIFICATION_BROADCAST_RULE_COOKIE

◆ VERIFICATION_UNICAST_RULE_COOKIE
