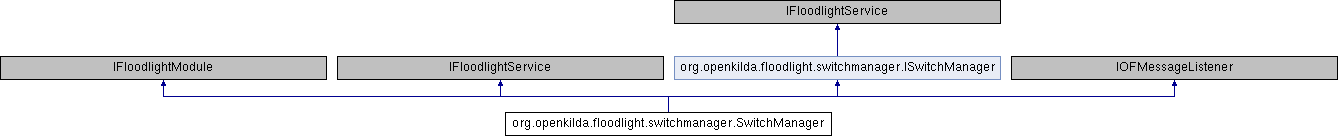

Inheritance diagram for org.openkilda.floodlight.switchmanager.SwitchManager:

Public Member Functions
Collection< Class<? extends IFloodlightService > >	getModuleServices ()

Map< Class<? extends IFloodlightService >, IFloodlightService >	getServiceImpls ()

Collection< Class<? extends IFloodlightService > >	getModuleDependencies ()

void	init (FloodlightModuleContext context) throws FloodlightModuleException

void	startUp (FloodlightModuleContext context) throws FloodlightModuleException

Command	receive (IOFSwitch sw, OFMessage msg, FloodlightContext cntx)

String	getName ()

boolean	isCallbackOrderingPrereq (OFType type, String name)

boolean	isCallbackOrderingPostreq (OFType type, String name)

ConnectModeRequest.Mode	connectMode (final ConnectModeRequest.Mode mode)

void	installDefaultRules (final DatapathId dpid) throws SwitchOperationException

long	installIngressFlow (final DatapathId dpid, final String flowId, final Long cookie, final int inputPort, final int outputPort, final int inputVlanId, final int transitVlanId, final OutputVlanType outputVlanType, final long meterId) throws SwitchOperationException

long	installEgressFlow (final DatapathId dpid, String flowId, final Long cookie, final int inputPort, final int outputPort, final int transitVlanId, final int outputVlanId, final OutputVlanType outputVlanType) throws SwitchOperationException

long	installTransitFlow (final DatapathId dpid, final String flowId, final Long cookie, final int inputPort, final int outputPort, final int transitVlanId) throws SwitchOperationException

long	installOneSwitchFlow (final DatapathId dpid, final String flowId, final Long cookie, final int inputPort, final int outputPort, final int inputVlanId, final int outputVlanId, final OutputVlanType outputVlanType, final long meterId) throws SwitchOperationException

List< OFFlowStatsEntry >	dumpFlowTable (final DatapathId dpid)

OFMeterConfigStatsReply	dumpMeters (final DatapathId dpid) throws SwitchOperationException

long	installMeter (final DatapathId dpid, final long bandwidth, final long burstSize, final long meterId) throws SwitchOperationException

Map< DatapathId, IOFSwitch >	getAllSwitchMap ()

long	deleteMeter (final DatapathId dpid, final long meterId) throws SwitchOperationException

List< Long >	deleteAllNonDefaultRules (final DatapathId dpid) throws SwitchOperationException

List< Long >	deleteRulesByCriteria (final DatapathId dpid, DeleteRulesCriteria... criteria) throws SwitchOperationException

List< Long >	deleteDefaultRules (final DatapathId dpid) throws SwitchOperationException

void	installVerificationRule (final DatapathId dpid, final boolean isBroadcast) throws SwitchOperationException

void	installDropFlowCustom (final DatapathId dpid, String dstMac, String dstMask, final long cookie, final int priority) throws SwitchOperationException

void	installDropFlow (final DatapathId dpid) throws SwitchOperationException

void	startSafeMode (final DatapathId dpid)

void	stopSafeMode (final DatapathId dpid)

void	safeModeTick ()

void	sendSwitchActivate (final IOFSwitch sw) throws SwitchOperationException

void	sendPortUpEvents (final IOFSwitch sw) throws SwitchOperationException

void	configurePort (DatapathId dpId, int portNumber, Boolean portAdminDown) throws SwitchOperationException

Static Public Attributes
static final long	FLOW_COOKIE_MASK = 0x7FFFFFFFFFFFFFFFL

static final int	VERIFICATION_RULE_PRIORITY = FlowModUtils.PRIORITY_MAX - 1000

static final int	DEFAULT_RULE_PRIORITY = FlowModUtils.PRIORITY_HIGH

Additional Inherited Members
Public Attributes inherited from org.openkilda.floodlight.switchmanager.ISwitchManager
String	OVS_MANUFACTURER = "Nicira, Inc."

long	DROP_RULE_COOKIE = 0x8000000000000001L

long	VERIFICATION_BROADCAST_RULE_COOKIE = 0x8000000000000002L

long	VERIFICATION_UNICAST_RULE_COOKIE = 0x8000000000000003L

Detailed Description

Created by jonv on 29/3/17.

Definition at line 120 of file SwitchManager.java.

Member Function Documentation

◆ configurePort()

void org.openkilda.floodlight.switchmanager.SwitchManager.configurePort	(	DatapathId	dpId,
		int	portNumber,
		Boolean	portAdminDown
	)		throws SwitchOperationException

Configure switch port.
Configurations

UP/DOWN port
Change port speed

Parameters

dpId	datapath ID of the switch.
portNumber	the port to configure.
portAdminDown	the port status to be applied.

Exceptions

SwitchOperationException Switch not found or Port not found

Implements org.openkilda.floodlight.switchmanager.ISwitchManager.

Definition at line 1484 of file SwitchManager.java.

◆ connectMode()

ConnectModeRequest.Mode org.openkilda.floodlight.switchmanager.SwitchManager.connectMode ( final ConnectModeRequest.Mode mode )

Set connection mode.

Parameters

mode	the mode to use, if not null

Returns: the connection mode after the set operation (if not null)

Implements org.openkilda.floodlight.switchmanager.ISwitchManager.

Definition at line 290 of file SwitchManager.java.

◆ deleteAllNonDefaultRules()

List<Long> org.openkilda.floodlight.switchmanager.SwitchManager.deleteAllNonDefaultRules ( final DatapathId dpid ) throws SwitchOperationException

Deletes all non-default rules from the switch.

Parameters

dpid	datapath ID of the switch

Returns: the list of cookies for removed rules

Exceptions

SwitchOperationException Switch not found

Implements org.openkilda.floodlight.switchmanager.ISwitchManager.

Definition at line 594 of file SwitchManager.java.

◆ deleteDefaultRules()

List<Long> org.openkilda.floodlight.switchmanager.SwitchManager.deleteDefaultRules ( final DatapathId dpid ) throws SwitchOperationException

Deletes the default rules (drop + verification) from the switch.

Parameters

dpid	datapath ID of the switch

Returns: the list of cookies for removed rules

Exceptions

SwitchOperationException Switch not found

Implements org.openkilda.floodlight.switchmanager.ISwitchManager.

Definition at line 680 of file SwitchManager.java.

◆ deleteMeter()

long org.openkilda.floodlight.switchmanager.SwitchManager.deleteMeter	(	final DatapathId	dpid,
		final long	meterId
	)		throws SwitchOperationException

Deletes the meter from the switch OF_13.

Parameters

dpid	datapath ID of the switch
meterId	meter identifier

Returns: transaction id

Exceptions

SwitchOperationException Switch not found

Implements org.openkilda.floodlight.switchmanager.ISwitchManager.

Definition at line 571 of file SwitchManager.java.

◆ deleteRulesByCriteria()

List<Long> org.openkilda.floodlight.switchmanager.SwitchManager.deleteRulesByCriteria	(	final DatapathId	dpid,
		DeleteRulesCriteria...	criteria
	)		throws SwitchOperationException

Delete rules that match the criteria.

Parameters

dpid	datapath ID of the switch
criteria	the list of delete criteria

Returns: the list of removed cookies

Exceptions

SwitchOperationException Switch not found

Implements org.openkilda.floodlight.switchmanager.ISwitchManager.

Definition at line 649 of file SwitchManager.java.

◆ dumpFlowTable()

List<OFFlowStatsEntry> org.openkilda.floodlight.switchmanager.SwitchManager.dumpFlowTable ( final DatapathId dpid )

Returns list of installed flows.

Parameters

dpid switch id

Returns: OF flow stats entries

Implements org.openkilda.floodlight.switchmanager.ISwitchManager.

Definition at line 467 of file SwitchManager.java.

◆ dumpMeters()

OFMeterConfigStatsReply org.openkilda.floodlight.switchmanager.SwitchManager.dumpMeters ( final DatapathId dpid ) throws SwitchOperationException

Returns list of installed meters.

Parameters

dpid switch id

Returns: OF meter config stats entries

Exceptions

SwitchOperationException Switch not found

Implements org.openkilda.floodlight.switchmanager.ISwitchManager.

Definition at line 500 of file SwitchManager.java.

◆ getAllSwitchMap()

Map<DatapathId, IOFSwitch> org.openkilda.floodlight.switchmanager.SwitchManager.getAllSwitchMap ( )

Implements org.openkilda.floodlight.switchmanager.ISwitchManager.

Definition at line 561 of file SwitchManager.java.

◆ getModuleDependencies()

Collection<Class<? extends IFloodlightService> > org.openkilda.floodlight.switchmanager.SwitchManager.getModuleDependencies ( )

Definition at line 196 of file SwitchManager.java.

◆ getModuleServices()

Collection<Class<? extends IFloodlightService> > org.openkilda.floodlight.switchmanager.SwitchManager.getModuleServices ( )

Definition at line 176 of file SwitchManager.java.

◆ getName()

String org.openkilda.floodlight.switchmanager.SwitchManager.getName ( )

Definition at line 262 of file SwitchManager.java.

◆ getServiceImpls()

Map<Class<? extends IFloodlightService>, IFloodlightService> org.openkilda.floodlight.switchmanager.SwitchManager.getServiceImpls ( )

Definition at line 186 of file SwitchManager.java.

◆ init()

void org.openkilda.floodlight.switchmanager.SwitchManager.init ( FloodlightModuleContext context ) throws FloodlightModuleException

Definition at line 208 of file SwitchManager.java.

◆ installDefaultRules()

void org.openkilda.floodlight.switchmanager.SwitchManager.installDefaultRules ( final DatapathId dpid ) throws SwitchOperationException

Adds default rules to install verification rules and final drop rule. Essentially, it calls installDropFlow and installVerificationRule twice (ie isBroadcast)

Parameters

dpid	datapathId of switch

Exceptions

SwitchOperationException in case of errors

Implements org.openkilda.floodlight.switchmanager.ISwitchManager.

Definition at line 301 of file SwitchManager.java.

◆ installDropFlow()

void org.openkilda.floodlight.switchmanager.SwitchManager.installDropFlow ( final DatapathId dpid ) throws SwitchOperationException

Installs the default drop rule.

Parameters

dpid	datapathId of switch

Exceptions

SwitchOperationException in case of errors

Implements org.openkilda.floodlight.switchmanager.ISwitchManager.

Definition at line 747 of file SwitchManager.java.

◆ installDropFlowCustom()

void org.openkilda.floodlight.switchmanager.SwitchManager.installDropFlowCustom	(	final DatapathId	dpid,
		String	dstMac,
		String	dstMask,
		final long	cookie,
		final int	priority
	)		throws SwitchOperationException

Installs custom drop rule .. ie cookie, priority, match

Parameters

dpid	datapathId of switch
dstMac	Destination Mac address to match on
dstMask	Destination Mask to match on
cookie	Cookie to use for this rule
priority	Priority of the rule

Exceptions

SwitchOperationException switch operation exception

Implements org.openkilda.floodlight.switchmanager.ISwitchManager.

Definition at line 731 of file SwitchManager.java.

◆ installEgressFlow()

long org.openkilda.floodlight.switchmanager.SwitchManager.installEgressFlow	(	final DatapathId	dpid,
		String	flowId,
		final Long	cookie,
		final int	inputPort,
		final int	outputPort,
		final int	transitVlanId,
		final int	outputVlanId,
		final OutputVlanType	outputVlanType
	)		throws SwitchOperationException

Installs flow on egress swtich.

Parameters

dpid	datapathId of the switch
flowId	flow id
inputPort	port to expect the packet on
outputPort	port to forward the packet out
transitVlanId	vlan to match on the ingressPort
outputVlanId	set vlan on packet before forwarding via outputPort; 0 means not to set
outputVlanType	type of action to apply to the outputVlanId if greater than 0

Returns: transaction id

Exceptions

SwitchOperationException Switch not found

Implements org.openkilda.floodlight.switchmanager.ISwitchManager.

Definition at line 356 of file SwitchManager.java.

◆ installIngressFlow()

long org.openkilda.floodlight.switchmanager.SwitchManager.installIngressFlow	(	final DatapathId	dpid,
		final String	flowId,
		final Long	cookie,
		final int	inputPort,
		final int	outputPort,
		final int	inputVlanId,
		final int	transitVlanId,
		final OutputVlanType	outputVlanType,
		final long	meterId
	)		throws SwitchOperationException

Installs an flow on ingress switch.

Parameters

dpid	datapathId of the switch
flowId	flow id
inputPort	port to expect the packet on
outputPort	port to forward the packet out
inputVlanId	input vlan to match on, 0 means not to match on vlan
transitVlanId	vlan to add before outputing on outputPort

Returns: transaction id

Exceptions

SwitchOperationException Switch not found

Implements org.openkilda.floodlight.switchmanager.ISwitchManager.

Definition at line 311 of file SwitchManager.java.

◆ installMeter()

long org.openkilda.floodlight.switchmanager.SwitchManager.installMeter	(	final DatapathId	dpid,
		final long	bandwidth,
		final long	burstSize,
		final long	meterId
	)		throws SwitchOperationException

Installs a meter on ingress switch OF_13. TODO: describe params meaning in accordance with OF

Parameters

dpid	datapath ID of the switch
bandwidth	the bandwidth limit value
burstSize	the size of the burst
meterId	the meter ID

Returns: transaction id

Exceptions

SwitchOperationException Switch not found

Implements org.openkilda.floodlight.switchmanager.ISwitchManager.

Definition at line 531 of file SwitchManager.java.

◆ installOneSwitchFlow()

long org.openkilda.floodlight.switchmanager.SwitchManager.installOneSwitchFlow	(	final DatapathId	dpid,
		final String	flowId,
		final Long	cookie,
		final int	inputPort,
		final int	outputPort,
		final int	inputVlanId,
		final int	outputVlanId,
		final OutputVlanType	outputVlanType,
		final long	meterId
	)		throws SwitchOperationException

Installs flow through one switch.

Parameters

dpid	datapathId of the switch
flowId	flow id
inputPort	port to expect packet on
outputPort	port to forward packet out
inputVlanId	vlan to match on inputPort
outputVlanId	set vlan on packet before forwarding via outputPort; 0 means not to set
outputVlanType	type of action to apply to the outputVlanId if greater than 0

Returns: transaction id

Exceptions

SwitchOperationException Switch not found

Implements org.openkilda.floodlight.switchmanager.ISwitchManager.

Definition at line 416 of file SwitchManager.java.

◆ installTransitFlow()

long org.openkilda.floodlight.switchmanager.SwitchManager.installTransitFlow	(	final DatapathId	dpid,
		final String	flowId,
		final Long	cookie,
		final int	inputPort,
		final int	outputPort,
		final int	transitVlanId
	)		throws SwitchOperationException

Installs flow on a transit switch.

Parameters

dpid	datapathId of the switch
flowId	flow id
inputPort	port to expect packet on
outputPort	port to forward packet out
transitVlanId	vlan to match on inputPort

Returns: transaction id

Exceptions

SwitchOperationException Switch not found

Implements org.openkilda.floodlight.switchmanager.ISwitchManager.

Definition at line 388 of file SwitchManager.java.

◆ installVerificationRule()

void org.openkilda.floodlight.switchmanager.SwitchManager.installVerificationRule	(	final DatapathId	dpid,
		final boolean	isBroadcast
	)		throws SwitchOperationException

Installs the default verification rule, if it is allowed. One case where it isn't - if the switch is an OpenFlow 1.2 switch and isBroadcast = false. In that scenario, nothing happens.

Implements org.openkilda.floodlight.switchmanager.ISwitchManager.

Definition at line 689 of file SwitchManager.java.

◆ isCallbackOrderingPostreq()

boolean org.openkilda.floodlight.switchmanager.SwitchManager.isCallbackOrderingPostreq	(	OFType	type,
		String	name
	)

Definition at line 281 of file SwitchManager.java.

◆ isCallbackOrderingPrereq()

boolean org.openkilda.floodlight.switchmanager.SwitchManager.isCallbackOrderingPrereq	(	OFType	type,
		String	name
	)

Definition at line 272 of file SwitchManager.java.

◆ receive()

Command org.openkilda.floodlight.switchmanager.SwitchManager.receive	(	IOFSwitch	sw,
		OFMessage	msg,
		FloodlightContext	cntx
	)

Definition at line 244 of file SwitchManager.java.

◆ safeModeTick()

void org.openkilda.floodlight.switchmanager.SwitchManager.safeModeTick ( )

Implements org.openkilda.floodlight.switchmanager.ISwitchManager.

Definition at line 1357 of file SwitchManager.java.

◆ sendPortUpEvents()

void org.openkilda.floodlight.switchmanager.SwitchManager.sendPortUpEvents ( final IOFSwitch sw ) throws SwitchOperationException

Implements org.openkilda.floodlight.switchmanager.ISwitchManager.

Definition at line 1470 of file SwitchManager.java.

◆ sendSwitchActivate()

void org.openkilda.floodlight.switchmanager.SwitchManager.sendSwitchActivate ( final IOFSwitch sw ) throws SwitchOperationException

Implements org.openkilda.floodlight.switchmanager.ISwitchManager.

Definition at line 1461 of file SwitchManager.java.

◆ startSafeMode()

void org.openkilda.floodlight.switchmanager.SwitchManager.startSafeMode ( final DatapathId dpid )

Safely install default rules - ie monitor traffic.

Implements org.openkilda.floodlight.switchmanager.ISwitchManager.

Definition at line 1326 of file SwitchManager.java.

◆ startUp()

void org.openkilda.floodlight.switchmanager.SwitchManager.startUp ( FloodlightModuleContext context ) throws FloodlightModuleException

Definition at line 233 of file SwitchManager.java.

◆ stopSafeMode()

void org.openkilda.floodlight.switchmanager.SwitchManager.stopSafeMode ( final DatapathId dpid )

Stop the safe install .. switch is deactivated or removed.

Implements org.openkilda.floodlight.switchmanager.ISwitchManager.

Definition at line 1339 of file SwitchManager.java.

Member Data Documentation

◆ DEFAULT_RULE_PRIORITY

final int org.openkilda.floodlight.switchmanager.SwitchManager.DEFAULT_RULE_PRIORITY = FlowModUtils.PRIORITY_HIGH

static

Definition at line 132 of file SwitchManager.java.

◆ FLOW_COOKIE_MASK

final long org.openkilda.floodlight.switchmanager.SwitchManager.FLOW_COOKIE_MASK = 0x7FFFFFFFFFFFFFFFL

static

Make sure we clear the top bit .. that is for NON_SYSTEM_MASK. This mask is applied to Cookie IDs when creating a flow.

Definition at line 127 of file SwitchManager.java.

◆ VERIFICATION_RULE_PRIORITY

final int org.openkilda.floodlight.switchmanager.SwitchManager.VERIFICATION_RULE_PRIORITY = FlowModUtils.PRIORITY_MAX - 1000

static

Definition at line 131 of file SwitchManager.java.

The documentation for this class was generated from the following file:

/Users/kevin/Desktop/Kilda/open-kilda-develop/services/src/floodlight-modules/src/main/java/org/openkilda/floodlight/switchmanager/SwitchManager.java

Public Member Functions

Static Public Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ configurePort()

◆ connectMode()

◆ deleteAllNonDefaultRules()

◆ deleteDefaultRules()

◆ deleteMeter()

◆ deleteRulesByCriteria()

◆ dumpFlowTable()

◆ dumpMeters()

◆ getAllSwitchMap()

◆ getModuleDependencies()

◆ getModuleServices()

◆ getName()

◆ getServiceImpls()

◆ init()

◆ installDefaultRules()

◆ installDropFlow()

◆ installDropFlowCustom()

◆ installEgressFlow()

◆ installIngressFlow()

◆ installMeter()

◆ installOneSwitchFlow()

◆ installTransitFlow()

◆ installVerificationRule()

◆ isCallbackOrderingPostreq()

◆ isCallbackOrderingPrereq()

◆ receive()

◆ safeModeTick()

◆ sendPortUpEvents()

◆ sendSwitchActivate()

◆ startSafeMode()

◆ startUp()

◆ stopSafeMode()

Member Data Documentation

◆ DEFAULT_RULE_PRIORITY

◆ FLOW_COOKIE_MASK

◆ VERIFICATION_RULE_PRIORITY
