org.openkilda.pce.provider.PathComputer Interface Reference

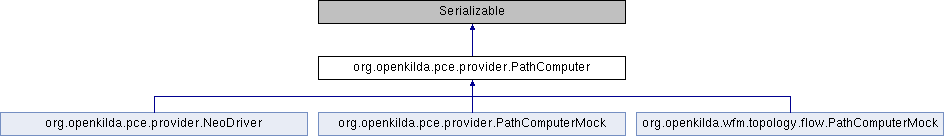

Inheritance diagram for org.openkilda.pce.provider.PathComputer:

Classes
enum	Strategy

Public Member Functions
default Long	getWeight (IslInfoData isl)
ImmutablePair< PathInfoData, PathInfoData >	getPath (Flow flow, AvailableNetwork network, Strategy strategy) throws UnroutablePathException, RecoverableException
ImmutablePair< PathInfoData, PathInfoData >	getPath (Flow flow, Strategy strategy) throws UnroutablePathException, RecoverableException
default List< FlowInfo >	getFlowInfo ()
default List< Flow >	getAllFlows ()
default List< Flow >	getFlow (String flowId)
default List< Flow >	getFlows (String flowId)
default List< SwitchInfoData >	getSwitches ()
default List< IslInfoData >	getIsls ()
AvailableNetwork	getAvailableNetwork (boolean ignoreBandwidth, long requestedBandwidth)

Detailed Description

PathComputation interface represent operations on flow path.

Definition at line 33 of file PathComputer.java.

Member Function Documentation

getAllFlows()

default List<Flow> org.openkilda.pce.provider.PathComputer.getAllFlows

(

)

Read flows from Neo4j and covert them in our common representation org.openkilda.messaging.model.Flow

Returns

all flow objects stored in neo4j

Implemented in org.openkilda.pce.provider.NeoDriver.

Definition at line 87 of file PathComputer.java.

getAvailableNetwork()

AvailableNetwork org.openkilda.pce.provider.PathComputer.getAvailableNetwork	(	boolean	ignoreBandwidth,
		long	requestedBandwidth
	)

Loads network and ignores all ISLs with not enough available bandwidth if ignoreBandwidth is false.

Parameters

ignoreBandwidth	defines if available bandwidth of links should be taken into account for calculations.
requestedBandwidth	links in path should have enough amount of available bandwidth.

Returns

built network.

Implemented in org.openkilda.pce.provider.NeoDriver, org.openkilda.pce.provider.PathComputerMock, and org.openkilda.wfm.topology.flow.PathComputerMock.

getFlow()

default List<Flow> org.openkilda.pce.provider.PathComputer.getFlow

(

String

flowId

)

Read a single flow from Neo4j and convert to our common representation Flow. In reality, a single flow will typically be bi-directional, so just represent as a list.

Returns

the Flow if it exists, null otherwise.

Implemented in org.openkilda.pce.provider.NeoDriver.

Definition at line 97 of file PathComputer.java.

getFlowInfo()

default List<FlowInfo> org.openkilda.pce.provider.PathComputer.getFlowInfo

(

)

Interact with the PathComputer to get the FlowInfo for all flows.

Returns

a list containing the "key" flow info for all flows.

Implemented in org.openkilda.pce.provider.NeoDriver, and org.openkilda.pce.provider.PathComputerMock.

Definition at line 77 of file PathComputer.java.

getFlows()

default List<Flow> org.openkilda.pce.provider.PathComputer.getFlows

(

String

flowId

)

Implemented in org.openkilda.pce.provider.NeoDriver.

Definition at line 104 of file PathComputer.java.

getIsls()

default List<IslInfoData> org.openkilda.pce.provider.PathComputer.getIsls

(

)

Implemented in org.openkilda.pce.provider.NeoDriver.

Definition at line 112 of file PathComputer.java.

getPath() [1/2]

ImmutablePair<PathInfoData, PathInfoData> org.openkilda.pce.provider.PathComputer.getPath	(	Flow	flow,
		AvailableNetwork	network,
		Strategy	strategy
	)		throws UnroutablePathException, RecoverableException

Gets path between source and destination switches for specified flow in preloaded network topology.

Parameters

flow	Flow instances
network	prepared network where searching will be performed.

Returns

PathInfoData instances

Implemented in org.openkilda.pce.provider.NeoDriver, org.openkilda.pce.provider.PathComputerMock, and org.openkilda.wfm.topology.flow.PathComputerMock.

getPath() [2/2]

ImmutablePair<PathInfoData, PathInfoData> org.openkilda.pce.provider.PathComputer.getPath	(	Flow	flow,
		Strategy	strategy
	)		throws UnroutablePathException, RecoverableException

Gets path between source and destination switch for specified flow.

Parameters

flow	Flow instances

Returns

PathInfoData instances

Implemented in org.openkilda.pce.provider.PathComputerMock, org.openkilda.pce.provider.NeoDriver, and org.openkilda.wfm.topology.flow.PathComputerMock.

getSwitches()

default List<SwitchInfoData> org.openkilda.pce.provider.PathComputer.getSwitches

(

)

Implemented in org.openkilda.pce.provider.NeoDriver.

Definition at line 108 of file PathComputer.java.

getWeight()

default Long org.openkilda.pce.provider.PathComputer.getWeight

(

IslInfoData

isl

)

Gets isl weight.

Parameters

isl	isl instance

Returns

isl weight

Implemented in org.openkilda.pce.provider.PathComputerMock.

Definition at line 49 of file PathComputer.java.

---

The documentation for this interface was generated from the following file:

• /Users/kevin/Desktop/Kilda/open-kilda-develop/services/src/pce/src/main/java/org/openkilda/pce/provider/PathComputer.java
