org.openkilda.northbound.service.FlowService Interface Reference

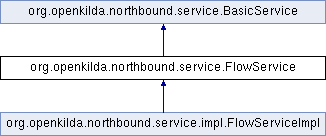

Inheritance diagram for org.openkilda.northbound.service.FlowService:

Public Member Functions
FlowPayload	createFlow (final FlowPayload flow)
FlowPayload	deleteFlow (final String id)
FlowPayload	updateFlow (final FlowPayload flow)
FlowPayload	getFlow (final String id)
List< FlowPayload >	getFlows ()
List< FlowPayload >	deleteFlows ()
FlowIdStatusPayload	statusFlow (final String id)
FlowPathPayload	pathFlow (final String id)
BatchResults	pushFlows (final List< FlowInfoData > externalFlows, Boolean propagate, Boolean verify)
BatchResults	unpushFlows (final List< FlowInfoData > externalFlows, Boolean propagate, Boolean verify)
FlowReroutePayload	rerouteFlow (final String flowId)
FlowReroutePayload	syncFlow (final String flowId)
List< FlowValidationDto >	validateFlow (final String flowId)
VerificationOutput	verifyFlow (String flowId, VerificationInput payload)
FlowCacheSyncResults	syncFlowCache (SynchronizeCacheAction syncCacheAction)
Public Member Functions inherited from org.openkilda.northbound.service.BasicService
default InfoData	validateInfoMessage (final Message requestMessage, final Message responseMessage, final String correlationId)

Additional Inherited Members
Public Attributes inherited from org.openkilda.northbound.service.BasicService
Logger	logger = LoggerFactory.getLogger(BasicService.class)

Detailed Description

FlowService is for operations on flows, primarily against the Flow Topology.

Definition at line 35 of file FlowService.java.

Member Function Documentation

createFlow()

FlowPayload org.openkilda.northbound.service.FlowService.createFlow

(

final FlowPayload

flow

)

Creates flow.

Parameters

flow

flow

Returns

created flow

Implemented in org.openkilda.northbound.service.impl.FlowServiceImpl.

deleteFlow()

FlowPayload org.openkilda.northbound.service.FlowService.deleteFlow

(

final String

id

)

Deletes flow.

Parameters

id

flow id

Returns

deleted flow

Implemented in org.openkilda.northbound.service.impl.FlowServiceImpl.

deleteFlows()

List<FlowPayload> org.openkilda.northbound.service.FlowService.deleteFlows

(

)

Deletes all flows. Primarily this is a combination of getFlows and deleteFlow. This should be called with care ..

Returns

the list of all deleted flows

Implemented in org.openkilda.northbound.service.impl.FlowServiceImpl.

getFlow()

FlowPayload org.openkilda.northbound.service.FlowService.getFlow

(

final String

id

)

Gets flow by id.

Parameters

id

flow id

Returns

flow

Implemented in org.openkilda.northbound.service.impl.FlowServiceImpl.

getFlows()

List<FlowPayload> org.openkilda.northbound.service.FlowService.getFlows

(

)

Gets all the flows.

Returns

the list of all flows with specified status

Implemented in org.openkilda.northbound.service.impl.FlowServiceImpl.

pathFlow()

FlowPathPayload org.openkilda.northbound.service.FlowService.pathFlow

(

final String

id

)

Gets flow path by id.

Parameters

id

flow id

Returns

Flow path

Implemented in org.openkilda.northbound.service.impl.FlowServiceImpl.

pushFlows()

BatchResults org.openkilda.northbound.service.FlowService.pushFlows	(	final List< FlowInfoData >	externalFlows,
		Boolean	propagate,
		Boolean	verify
	)

Use this to push flows that may not be in the database / caches but they should be.

Parameters

externalFlows	the list of flows to push.
propagate	if true, the path/rules will be propagated to the switch
verify	if true, we'll wait up to poll seconds to confirm if rules have been applied

Returns

Implemented in org.openkilda.northbound.service.impl.FlowServiceImpl.

rerouteFlow()

FlowReroutePayload org.openkilda.northbound.service.FlowService.rerouteFlow

(

final String

flowId

)

Performs rerouting of specific flow.

Parameters

flowId

id of flow to be rerouted.

Returns

updated flow path information with the result whether or not path was changed.

Implemented in org.openkilda.northbound.service.impl.FlowServiceImpl.

statusFlow()

FlowIdStatusPayload org.openkilda.northbound.service.FlowService.statusFlow

(

final String

id

)

Gets flow status by id.

Parameters

id

flow id

Returns

flow status

Implemented in org.openkilda.northbound.service.impl.FlowServiceImpl.

syncFlow()

FlowReroutePayload org.openkilda.northbound.service.FlowService.syncFlow

(

final String

flowId

)

Performs synchronization (reinstalling) of specific flow.

Parameters

flowId

id of flow to be synchronized.

Returns

updated flow.

Implemented in org.openkilda.northbound.service.impl.FlowServiceImpl.

syncFlowCache()

FlowCacheSyncResults org.openkilda.northbound.service.FlowService.syncFlowCache

(

SynchronizeCacheAction

syncCacheAction

)

Sync the FlowCache in the flow topology (in case it is out of sync.

Parameters

syncCacheAction

describes how to synchronize the cache.

Returns

details on performed updates.

Implemented in org.openkilda.northbound.service.impl.FlowServiceImpl.

unpushFlows()

BatchResults org.openkilda.northbound.service.FlowService.unpushFlows	(	final List< FlowInfoData >	externalFlows,
		Boolean	propagate,
		Boolean	verify
	)

Use this to unpush flows .. ie undo a push

Parameters

externalFlows	the list of flows to unpush.
propagate	if true, the path/rules will be propagated to the switch
verify	if true, we'll wait up to poll seconds to confirm if rules have been applied

Returns

Implemented in org.openkilda.northbound.service.impl.FlowServiceImpl.

updateFlow()

FlowPayload org.openkilda.northbound.service.FlowService.updateFlow

(

final FlowPayload

flow

)

Updates flow.

Parameters

flow

flow

Returns

updated flow

Implemented in org.openkilda.northbound.service.impl.FlowServiceImpl.

validateFlow()

List<FlowValidationDto> org.openkilda.northbound.service.FlowService.validateFlow

(

final String

flowId

)

Performs validation of specific flow - ie comparing what is in the database with what is on the network.

Parameters

flowId

id of the flow

Returns

the results of the comparison, or null if the flow isn't found.

Exceptions

java.nio.file.InvalidPathException

if the flow doesn't return a path and it should.

Implemented in org.openkilda.northbound.service.impl.FlowServiceImpl.

verifyFlow()

VerificationOutput org.openkilda.northbound.service.FlowService.verifyFlow	(	String	flowId,
		VerificationInput	payload
	)

Implemented in org.openkilda.northbound.service.impl.FlowServiceImpl.

---

The documentation for this interface was generated from the following file:

• /Users/kevin/Desktop/Kilda/open-kilda-develop/services/src/northbound/src/main/java/org/openkilda/northbound/service/FlowService.java
